Ceph 설치, 실행 / ceph-deploy 이용 / Ubuntu 18.04, ODROID-H2 Cluster 환경

1. 설치 환경

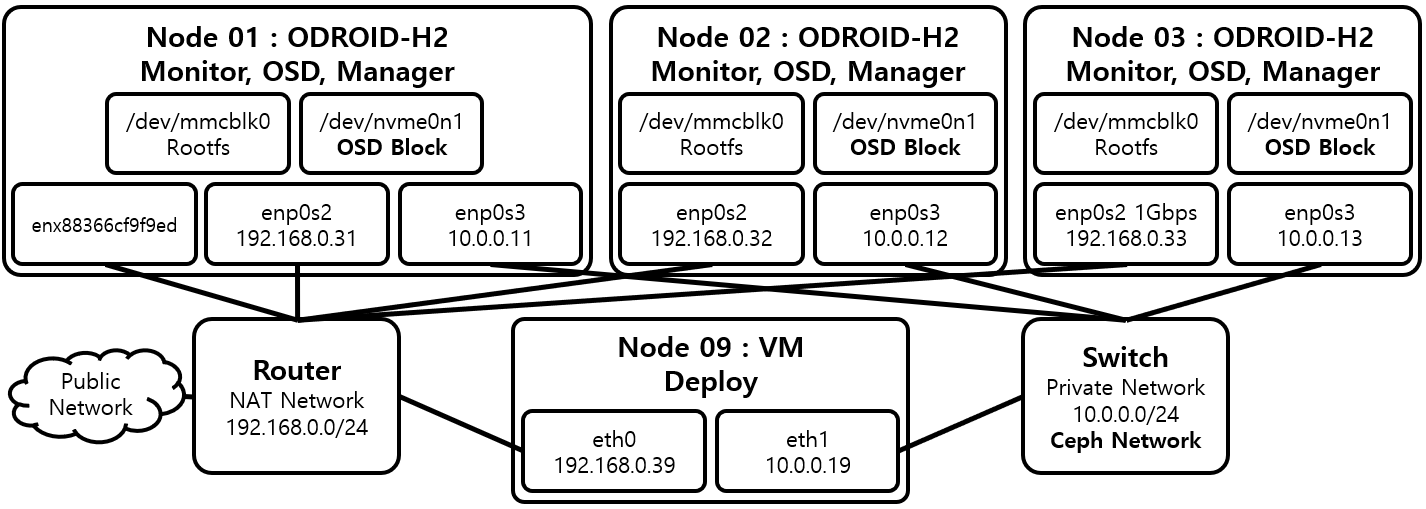

[그림 1] Ceph 설치 환경 (ODROID-H2 Cluster)

[그림 1]은 ODROID-H2 Cluster로 Ceph 설치 환경을 나타내고 있다. Ceph를 File Storage와 Object Storage로는 이용하지 않을 예정이기 때문에 MDS (Meta Data Server)와 radosgw는 설치하지 않는다. 주요 설치 환경은 아래와 같다.

2. Package 설치

2.1. Ceph Node

(Ceph)# sudo apt install ntp
(Ceph)# sudo apt install python

ntp, python Package를 설치한다.

(Ceph)# sudo useradd -d /home/cephnode -m cephnode
(Ceph)# sudo passwd cephnode
Enter new UNIX password:
Retype new UNIX password:
passwd: password updated successfully

(Ceph)# echo "cephnode ALL = (root) NOPASSWD:ALL" | sudo tee /etc/sudoers.d/cephnode
(Ceph)# sudo chmod 0440 /etc/sudoers.d/cephnode

cephnode User를 생성한다.

2.2. Deploy Node

...
10.0.0.11 node01
10.0.0.12 node02
10.0.0.13 node03
10.0.0.19 node09
...
[파일 1] Deploy Node - /etc/hosts

/etc/hosts 파일을 [파일 1]의 내용처럼 수정한다.

(Deploy)# wget -q -O- 'https://download.ceph.com/keys/release.asc' | sudo apt-key add -
(Deploy)# echo deb https://download.ceph.com/debian-luminous/ $(lsb_release -sc) main | sudo tee /etc/apt/sources.list.d/ceph.list
(Deploy)# sudo apt update
(Deploy)# sudo apt install ceph-deploy

ceph-deploy Package를 설치한다.

(Deploy)# sudo useradd -d /home/cephdeploy -m cephdeploy
(Deploy)# sudo passwd cephdeploy
Enter new UNIX password:
Retype new UNIX password:
passwd: password updated successfully

(Deploy)# echo "cephdeploy ALL = (root) NOPASSWD:ALL" | sudo tee /etc/sudoers.d/cephdeploy
(Deploy)# sudo chmod 0440 /etc/sudoers.d/cephdeploy

cephdeploy User를 생성한다.

(Deploy)# login cephdeploy
(Deploy)$ ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
...

(Deploy)$ ssh-copy-id cephnode@node01
(Deploy)$ ssh-copy-id cephnode@node02
(Deploy)$ ssh-copy-id cephnode@node03

SSH Key를 생성 및 복사한다.

Host node01
   Hostname node01
   User cephnode
Host node02
   Hostname node02
   User cephnode
Host node03
   Hostname node03
   User cephnode
[파일 2] Deploy Node - /home/cephdeploy/.ssh/config

/home/cephdeploy/.ssh/config 파일을 [파일 2]와 같이 수정한다.

3. Ceph Cluster 구성

3.1. Deploy Node

(Deploy)# login cephdeploy
(Deploy)$ mkdir my-cluster

Ceph Cluster Config 폴더를 생성한다.

(Deploy)# login cephdeploy
(Deploy)$ cd ~/my-cluster
(Deploy)$ ceph-deploy purge node01 node02 node03
(Deploy)$ ceph-deploy purgedata node01 node02 node03
(Deploy)$ ceph-deploy forgetkeys
(Deploy)$ rm ceph.*

Ceph Cluster를 초기화한다.

(Deploy)# login cephdeploy
(Deploy)$ cd ~/my-cluster
(Deploy)$ ceph-deploy new node01 node02 node03
(Deploy)$ ceph-deploy install node01 node02 node03
(Deploy)$ ceph-deploy mon create-initial
(Deploy)$ ceph-deploy admin node01 node02 node03
(Deploy)$ ceph-deploy mgr create node01 node02 node03
(Deploy)$ ceph-deploy osd create --data /dev/nvme0n1 node01
(Deploy)$ ceph-deploy osd create --data /dev/nvme0n1 node02
(Deploy)$ ceph-deploy osd create --data /dev/nvme0n1 node03

Ceph Cluster를 구축한다. MON (Monitor Daemon) 및 MGR (Manager Daemon)을 Node 01, Node 02, Node 03에 설치한다.

4. 동작 확인

(Ceph)# ceph -s
  cluster:
    id:     f2aeccb9-dac1-4271-8b06-19141d26e4cb
    health: HEALTH_OK

  services:
    mon: 3 daemons, quorum node01,node02,node03
    mgr: node01(active), standbys: node02, node03
    osd: 3 osds: 3 up, 3 in

  data:
    pools:   0 pools, 0 pgs
    objects: 0  objects, 0 B
    usage:   3.0 GiB used, 712 GiB / 715 GiB avail
    pgs:

Ceph Cluster가 정상적으로 구축되었는지 확인한다.

4.1. Block Storage

(Ceph)# ceph osd pool create rbd 16
(Ceph)# rbd pool init rbd

Pool 생성 및 초기화를 진행한다.

(Ceph)# rbd create foo --size 4096 --image-feature layering
(Ceph)# rbd map foo --name client.admin
/dev/rbd0

Block Storage을 생성 및 Mapping 한다.
