OpenStack Stein 설치 / Kolla-Ansible 이용 / Ubuntu 18.04, ODROID-H2 Cluster 환경

1. 설치 환경

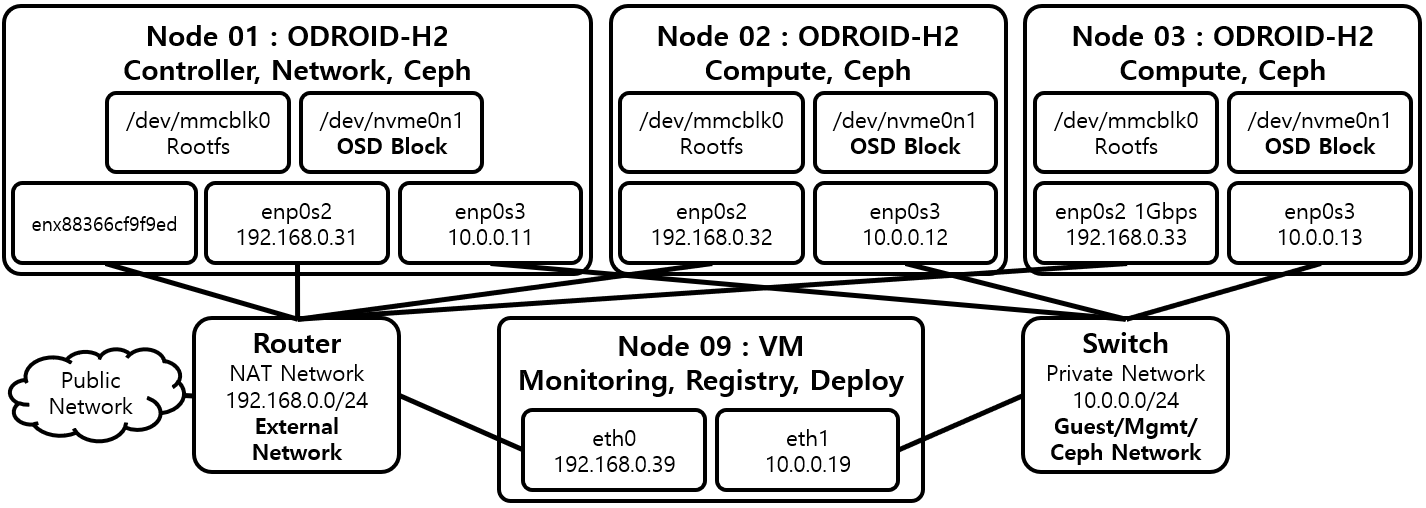

[그림 1] OpenStack Stein 설치 환경 (ODROID-H2 Cluster)

[그림 1]은 ODROID-H2 Cluster 기반 OpenStack 설치 환경을 나타내고 있다. 상세한 환경 정보는 다음과 같다.

2. OpenStack 구성

OpenStack의 구성요소 중에서 설치할 구성요소는 다음과 같다.

3. Network 설정

3.1. Node01 Node

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

network:
    ethernets:
        enx88366cf9f9ed:
            addresses:
            - 0.0.0.0/8
        enp2s0:
            addresses:
            - 192.168.0.31/24
            gateway4: 192.168.0.1
            nameservers:
                addresses:
                - 8.8.8.8
        enp3s0:
            addresses:
            - 10.0.0.11/24
    version: 2
[파일 1] Node01 - /etc/netplan/50-cloud-init.yaml

Node01 Interface의 IP를 설정한다.

3.2. Node02 Node

1
2
3
4
5
6
7
8
9
10
11
12
13

network:
    ethernets:
        enp2s0:
            addresses:
            - 192.168.0.32/24
            gateway4: 192.168.0.1
            nameservers:
                addresses:
                - 8.8.8.8
        enp3s0:
            addresses:
            - 10.0.0.12/24
    version: 2
[파일 2] Node02 - /etc/netplan/50-cloud-init.yaml

Node02 Interface의 IP를 설정한다.

3.3. Node03 Node

1
2
3
4
5
6
7
8
9
10
11
12
13

network:
    ethernets:
        enp2s0:
            addresses:
            - 192.168.0.33/24
            gateway4: 192.168.0.1
            nameservers:
                addresses:
                - 8.8.8.8
        enp3s0:
            addresses:
            - 10.0.0.13/24
    version: 2
[파일 3] Node03 - /etc/netplan/50-cloud-init.yaml

Node03 Interface의 IP를 설정한다.

3.4. Node09 Node

1
2
3
4
5
6
7
8
9
10
11
12
13

network:
    ethernets:
        eth0:
            addresses:
            - 192.168.0.39/24
            gateway4: 192.168.0.1
            nameservers:
                addresses:
                - 8.8.8.8
        eth1:
            addresses:
            - 10.0.0.19/24
    version: 2
[파일 4] Node09 - /etc/netplan/50-cloud-init.yaml

Node04 Interface의 IP를 설정한다.

4. Package 설치

4.1. Deploy Node

(Deploy)# apt-get install software-properties-common
(Deploy)# apt-add-repository ppa:ansible/ansible
(Deploy)# apt-get update
(Deploy)# apt-get install ansible python-pip python3-pip libguestfs-tools
(Deploy)# pip install kolla==8.0.0 kolla-ansible==8.0.0 tox gitpython pbr requests jinja2 oslo_config
(Deploy)# pip install python-openstackclient python-glanceclient python-neutronclient

Deploy Node에 Ansible과 Kolla-ansible 및 Kolla Container Image Build를 위한 Ubuntu, Python Package를 설치한다. 또한 OpenSTack CLI Client도 설치한다.

4.2. Registry Node

(Registry)# apt-get install docker-ce

Registry Node에 Registry Node 구동을 위한 Docker를 설치한다.

4.3. Network, Compute Node

(Network, Compute)# apt-get remove --purge openvswitch-switch

Open vSwitch Package가 설치되어 있다면 해당 Package를 지워서 Host에서 동작하는 Open vSwitch를 제거해야 한다. Open vSwitch 관련 Daemon은 오직 Container에서 동작해야 한다. Host와 Container에서 동시에 Open vSwitch 관련 Daemon을 구동하면 제대로 동작하지 않는다.

4.4. All Node

(All Node)# apt-get install ifupdown
(All Node)# apt-get remove --purge netplan.io

ifupdown을 설치하고 netplan을 삭제한다.

5. Ansible 설정

Deploy Node에서 다른 Node에게 Password 없이 SSH로 접근할 수 있도록 설정한다.

(Deploy)# ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:Sp0SUDPNKxTIYVObstB0QQPoG/csF9qe/v5+S5e8hf4 root@kube02
The key's randomart image is:
+---[RSA 2048]----+
|   oBB@=         |
|  .+o+.*o        |
| .. o.+  .       |
|  o..ooo..       |
|   +.=ooS        |
|  . o.=o     . o |
|     +..    . = .|
|      o    ..o o |
|     ..oooo...o.E|
+----[SHA256]-----+

Deploy Node에서 ssh key를 생성한다. passphrase (Password)는 공백을 입력하여 설정하지 않는다. 설정하게 되면 Deploy Node에서 다른 Node로 SSH를 통해서 접근 할때마다 passphrase를 입력해야 한다.

(Deploy)# ssh-copy-id root@10.0.0.11
(Deploy)# ssh-copy-id root@10.0.0.12
(Deploy)# ssh-copy-id root@10.0.0.13
(Deploy)# ssh-copy-id root@10.0.0.19

ssh-copy-id 명령어를 이용하여 생성한 ssh Public Key를 나머지 Node의 ~/.ssh/authorized_keys 파일에 복사한다.

1
2
3
4
5
6

...
10.0.0.11 node01
10.0.0.12 node02
10.0.0.13 node03
10.0.0.19 node09
...
[파일 5] Deploy Node - /etc/hosts

Deploy Node의 /etc/hosts 파일 내용을 [파일 5]과 같이 수정한다.

1
2
3
4
5
6

...
[defaults]
host_key_checking=False
pipelining=True
forks=100
...
[파일 6] Deploy Node - /etc/ansible/ansible.cfg:

Deploy Node의 /etc/ansible/ansible.cfg 파일을 [파일 6]와 같이 수정한다.

6. Kolla-Ansible 설정

(Deploy)# mkdir -p ~/kolla-ansible
(Deploy)# cp /usr/local/share/kolla-ansible/ansible/inventory/* ~/kolla-ansible/
(Deploy)# mkdir -p /etc/kolla
(Deploy)# cp -r /usr/local/share/kolla-ansible/etc_examples/kolla/* /etc/kolla

Inventory 파일들을 복사한다. 또한 Config 파일인 global.yaml 파일과 Password 정보가 포함되어 있는 passwords.yml 파일을 복사한다.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

# These initial groups are the only groups required to be modified. The
# additional groups are for more control of the environment.
[control]
# These hostname must be resolvable from your deployment host
node01

# The above can also be specified as follows:
#control[01:03]     ansible_user=kolla

# The network nodes are where your l3-agent and loadbalancers will run
# This can be the same as a host in the control group
[network]
node01

[compute]
node02
node03

[monitoring]
node09 api_interface=eth1

# When compute nodes and control nodes use different interfaces,
# you need to comment out "api_interface" and other interfaces from the globals.yml
# and specify like below:
#compute01 neutron_external_interface=eth0 api_interface=em1 storage_interface=em1 tunnel_interface=em1

[storage]
node01
node02
node03

[deployment]
node09

[baremetal:children]
control
network
compute
storage
monitoring

# You can explicitly specify which hosts run each project by updating the
# groups in the sections below. Common services are grouped together.
[chrony-server:children]
haproxy
...
[파일 7] Deploy Node - ~/kolla-ansible/multinode
