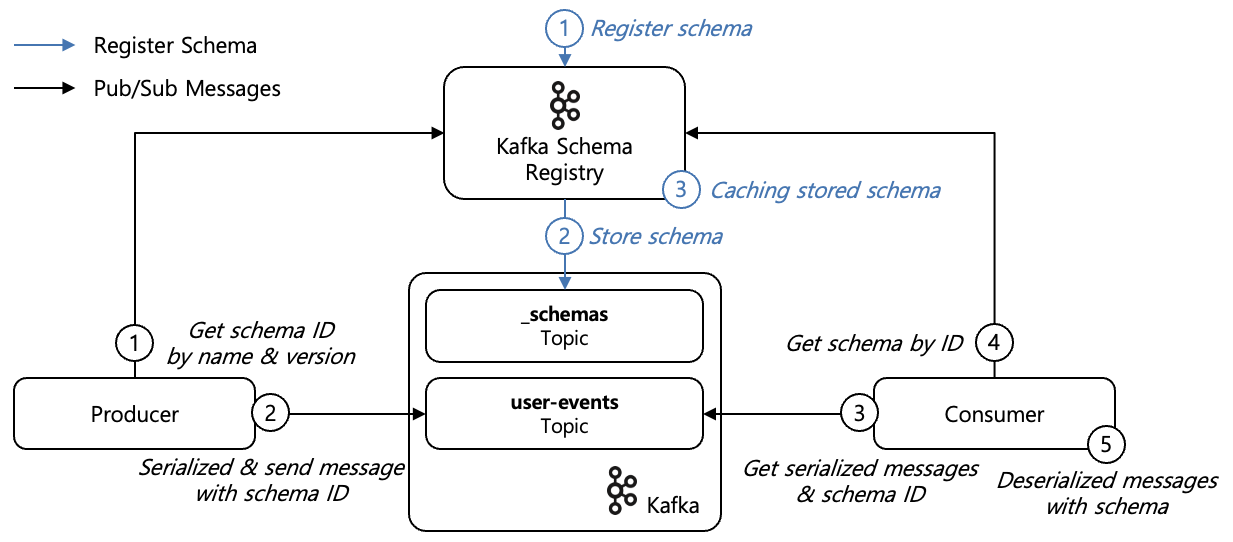

Kafka Schema Registry 실습 / Orange Pi 5 Max Cluster 환경

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

import os
import time
from confluent_kafka import Producer
from confluent_kafka.schema_registry import SchemaRegistryClient
from confluent_kafka.schema_registry.avro import AvroSerializer
from confluent_kafka.serialization import SerializationContext, MessageField

# Schema Registry configuration
schema_registry_url = os.getenv(
    "SCHEMA_REGISTRY_URL",
    "http://schema-registry.kafka:8081"
)
schema_registry_client = SchemaRegistryClient({"url": schema_registry_url})

# Kafka Producer configuration
kafka_bootstrap_servers = os.getenv(
    "KAFKA_BOOTSTRAP_SERVERS",
    "kafka-kafka-sasl-bootstrap.kafka:9092"
)
producer_config = {
    "bootstrap.servers": kafka_bootstrap_servers,
    "security.protocol": "SASL_PLAINTEXT",
    "sasl.mechanisms": "SCRAM-SHA-512",
    "sasl.username": "user",
    "sasl.password": "user",
}

# Retrieve schema from Schema Registry
print("Retrieving schema from Schema Registry")
schema = schema_registry_client.get_latest_version("user")
avro_schema_str = schema.schema.schema_str

# Create Avro Serializer (uses the retrieved schema from Schema Registry and embeds its schema ID in serialized messages)
avro_serializer = AvroSerializer(
    schema_registry_client,
    avro_schema_str,
    lambda obj, ctx: {
        "id": obj["id"],
        "name": obj["name"],
        "email": obj["email"]
    }
)

# Create Producer
producer = Producer(producer_config)

# Send message
def send_message(user_data):
    topic = "user-events"
    serialization_context = SerializationContext(topic, MessageField.VALUE)
    serialized_value = avro_serializer(user_data, serialization_context)

    producer.produce(
        topic=topic,
        value=serialized_value,
        callback=lambda err, msg: print(f"Message delivered: {msg.topic()} [{msg.partition()}]") if err is None else print(f"Delivery failed: {err}")
    )
    producer.poll(0)

# Send sample data
users = [
    {"id": 1, "name": "Alice", "email": "alice@example.com"},
    {"id": 2, "name": "Bob", "email": "bob@example.com"},
    {"id": 3, "name": "Charlie", "email": "charlie@example.com"},
]

for user in users:
    send_message(user)
    time.sleep(1)

# Wait for all messages to be sent
producer.flush()
print("All messages sent")

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59

import os
from confluent_kafka import Consumer
from confluent_kafka.schema_registry import SchemaRegistryClient
from confluent_kafka.schema_registry.avro import AvroDeserializer
from confluent_kafka.serialization import SerializationContext, MessageField

# Schema Registry configuration
schema_registry_url = os.getenv(
    "SCHEMA_REGISTRY_URL",
    "http://schema-registry.schema-registry.svc.cluster.local:8081"
)
schema_registry_client = SchemaRegistryClient({"url": schema_registry_url})

# Kafka Consumer configuration
kafka_bootstrap_servers = os.getenv(
    "KAFKA_BOOTSTRAP_SERVERS",
    "kafka-kafka-sasl-bootstrap.kafka:9092"
)
consumer_config = {
    "bootstrap.servers": kafka_bootstrap_servers,
    "group.id": "user-consumer-group",
    "auto.offset.reset": "earliest",
    "security.protocol": "SASL_PLAINTEXT",
    "sasl.mechanisms": "SCRAM-SHA-512",
    "sasl.username": "user",
    "sasl.password": "user",
}

# Create Avro Deserializer (automatically retrieves schema using schema ID from message if schema is not provided)
avro_deserializer = AvroDeserializer(schema_registry_client)

# Create Consumer
consumer = Consumer(consumer_config)

# Subscribe to topic
topic = "user-events"
consumer.subscribe([topic])

# Receive and process messages
print(f"Waiting for messages from topic: {topic}")
try:
    while True:
        msg = consumer.poll(timeout=1.0)
        if msg is None:
            continue
        if msg.error():
            print(f"Consumer error: {msg.error()}")
            continue

        # Deserialize Avro (automatically retrieves schema from Schema Registry using schema ID from message)
        serialization_context = SerializationContext(msg.topic(), MessageField.VALUE)
        user_data = avro_deserializer(msg.value(), serialization_context)

        print(f"Received message: {user_data}")

except KeyboardInterrupt:
    print("Consumer interrupted")
finally:
    consumer.close()
